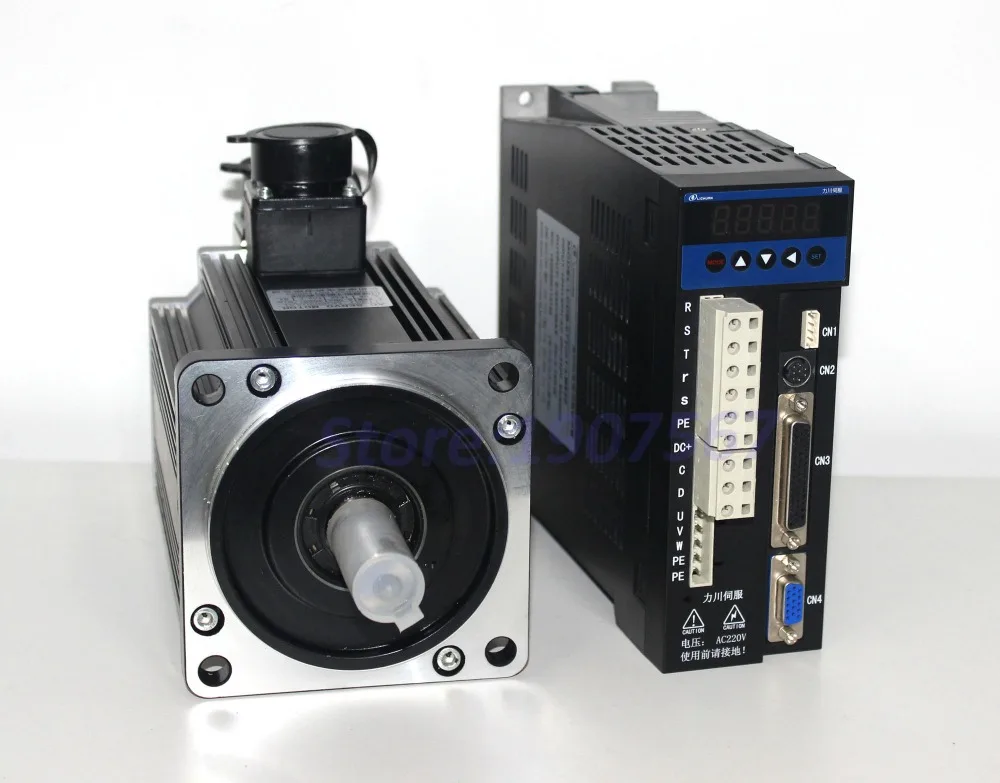

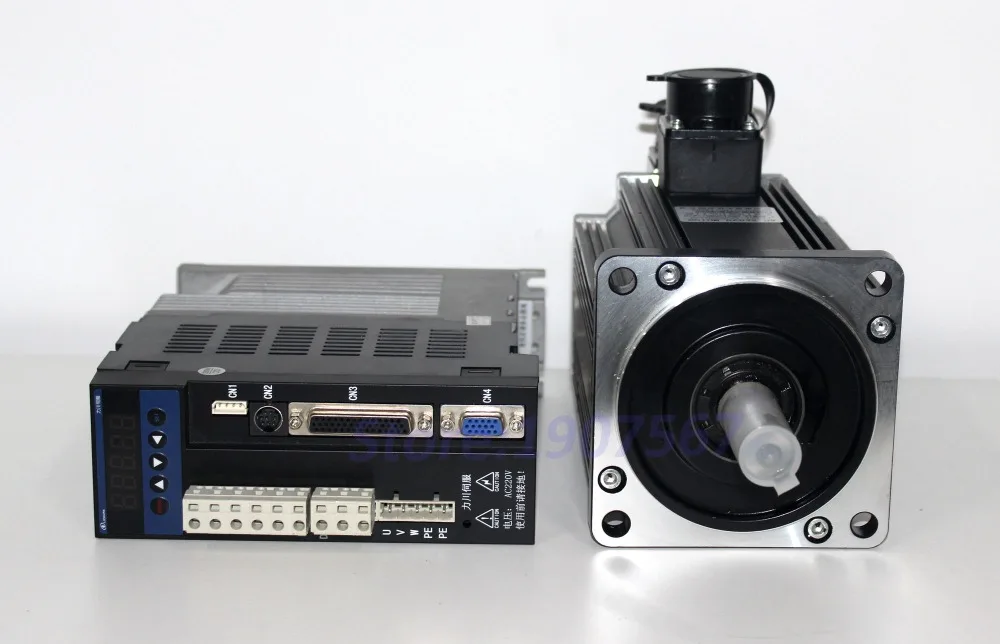

1.8KW 6NM 3000RPM Servo Motor with 110mm Frame+AC Servo Driver Support RS232/RS485 Communication Protocol,AC Servo System on CNC

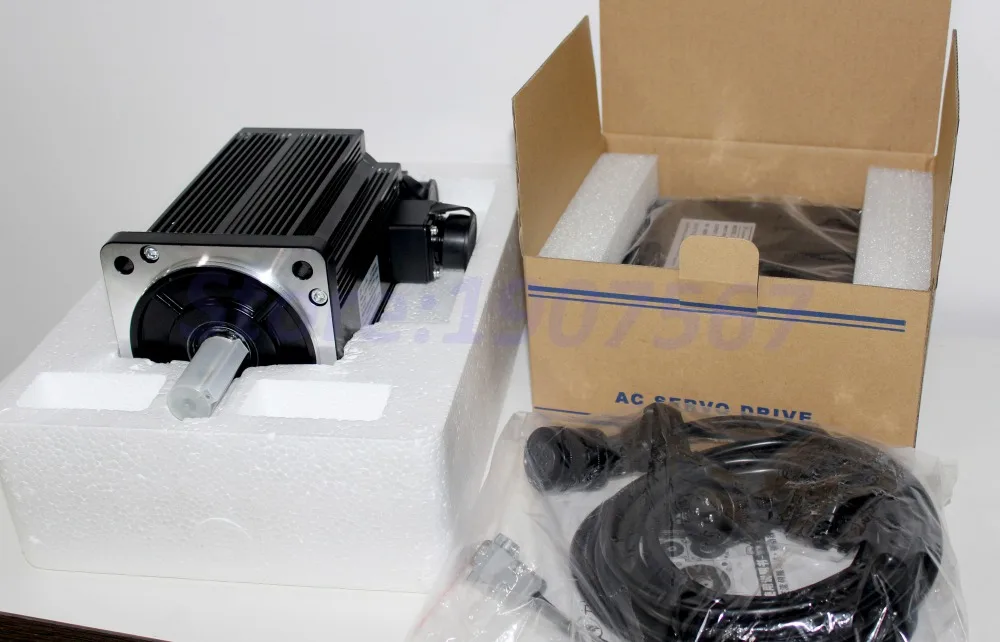

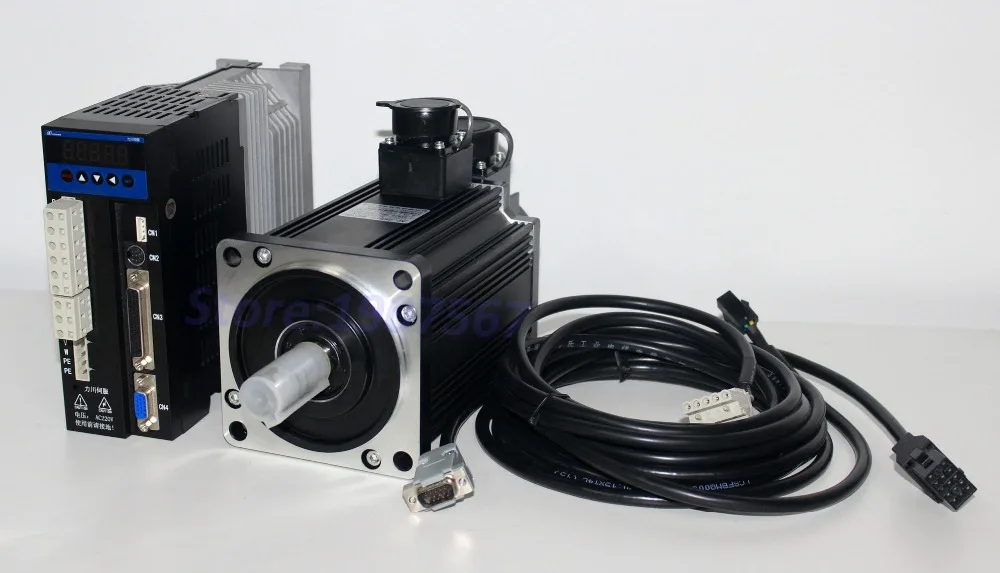

 Packaging List

No.	Product	Specifications	Qty
1	Lichuan 1.8KW 110ST-M06030 Servo Motor	LCMT-18L02NB-110M06030B	1
2	Lichuan 1.8KW Servo Driver	LCDB2-183002-LB1132	1
3	Power Cable	Standard (3m)	1
4	Encoder Cable	Standard (3m)	1
5	Servo Driver Instruction Book	Standard	1



Note:

If you need to communication the servo driver  to PC,please contact seller to confirm RS232 or RS485 cable so that we can send the right cable to you.

This cable doesn't including the package acquiescently,please kindly notice.





 1.8KW 110ST-M06030 Motor Parameters Overviews

Motor Model	LCMT-18L02NB-110M06030B	Brand	Lichuan
Frame Size	110 mm * 110 mm	Motor Length	219 mm
Shaft Diameter	19mm	Driving Voltage	Single / 3 Phase 220V
Rated Torque	6 N.M	Rated Speed	3000  RPM
Positioning Accuracy	a wire (0.01 mm)	Encoder	Tamagawa  2500ppr
Weight	6.7 kg	Matched Driver	Lichuan 1.8KW Servo Driver

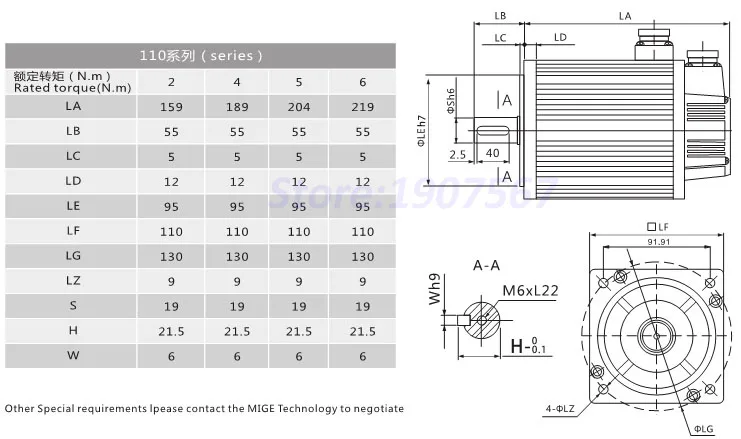

 Motor Mechanical Dimensions

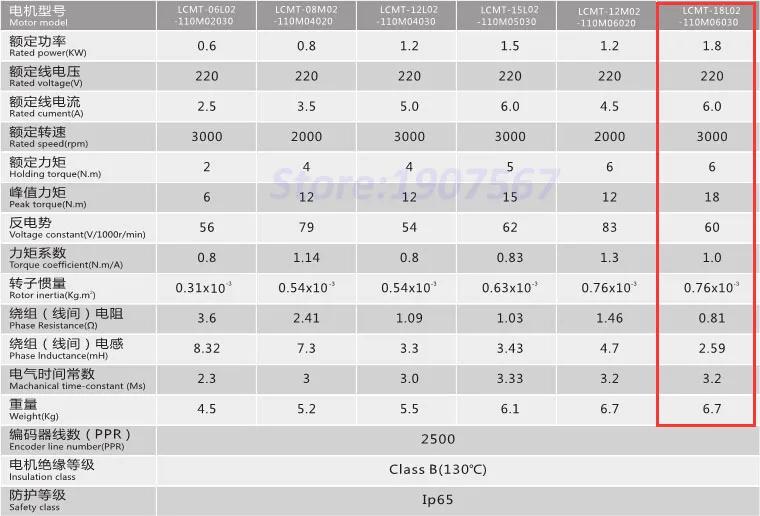

 110ST-M AC Servo Motor Specifications



 Lichuan Servo Motor Naming Rules

    LCMT - 02 L 02 N B - 60 M006 30 B

• LCMT--- Product information
• 02-------- 200W ( 04---400W /  07---750W /  10---1KW )
• L---------- Motor inertia ( L---low / M---middle )
• 02-------- Sensing form ( 01---line saving encoder 2500     02---15 type encoder 2500 )
• N---------- Without brake ( Z---with brake )
• B--------- only keyway no oil seal ( A---only oil seal no keyway  C---oil seal and keyway )
• 60-------- Frame size
• M006---  Torque
• 30-------- Speed
• B---------  B series ( A--- A series / C--- C series )

 Lichuan Servo Driver Naming Rules

     LCDB2 - 02 20 02 - L B 6 22

• LCDB2-- Product information
• 02-------- Motor power  ( 02---200W 04---400W /  07---750W /  10---1KW ... )
• 20-------- Peak current ( 20---20A / 30---30A / 50---50A / 75---75A )
• 02-------- Encoder information ( 01---line saving encoder  / 02---15 type encoder )
• L---------- Motor inertia ( L---low / M---middle )
• B---------Driver series ( A---A series / B---B series / C---C series )
• 6--------- Frame size ( including 6  /  8  /  9  /  110 ... )
• 22-------- Voltage ( 22---single phase 220v / 32---3 phase 220v / 34---3 phase 380v )

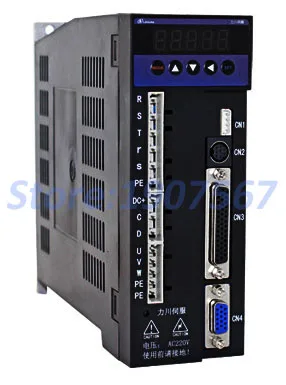

 1.8KW Servo Driver Features



1. Power Range: 1.8kw

2. Input Voltage: AC 200V ~ 230V , one phase / 3 phases

3. Position / Speed control mode
4. With MODBUS communication performance(RS-485 / RS-422 / RS-232), ASCII and RTU communication protocol

5. Encoder: 2500ppr
6. Articles made to order: drag ,oil seal
7. Axis: Circular shaft / keyway

 Lichuan Servo Motor Driver Wiring Diagram



 Shipping

       1. For Europe customers,generanlly send by Aliexpress standard shipping,DHL,Fedex,TNT.

       2. Russian customers please tell us your full name;

         Shipping cost is cheap,generanlly send by CDEK and PONY,less than 20 days delivery,no tax fee and customs chearance easily.
       3. Brazil,Argentina,Peru,India customers please give us your tax number after payment.



 Buying Notes



1.Product sources

    All the stepper and servo series products sold in this store are LICHUAN brand, factory-direct sale, no branch.



2.Model selection

    Before purchasing, please contact us to confirm the model number and specifications to avoid any misunderstanding.



3.Payment

    Alipay, Paypal and T/T is accepted.



4.Delivery

    Samples in stock will be delivered within 7 business days and customized samples will be delivered within 30 days.

    Delivery date for bulk order depends on order quantity.



5.After-sale service

    Technical support available.
